OASE

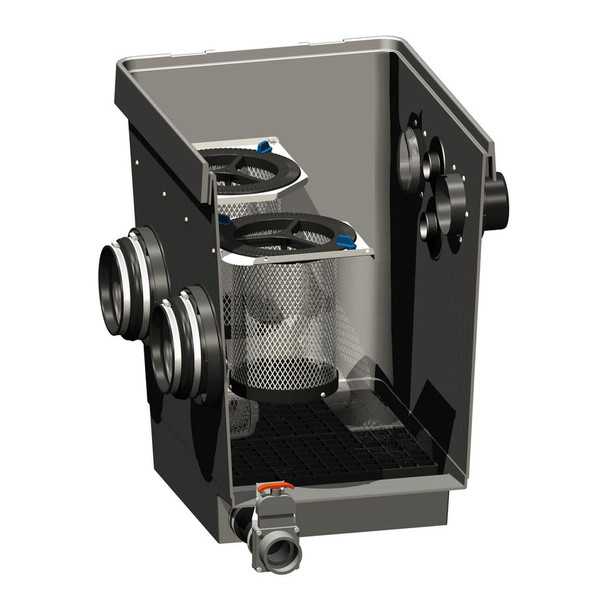

OASE ProfiClear Premium Individual Module
- SKU:
- WF-FILTERIM-03OG011
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
OASE ProfiClear Premium Individual Module
- Highly efficient filter system with deep bed filtration to 60 microns
- Intelligent controller completely handles the self cleaning
- First class price/performance ratio
Characteristics
- Mature, professional technology with more than three years of development time
- Space saving pump and UVC chamber for
- Maximum flexibility in the connection through 2 x DN110 and 2" transitions
- To increase the filter capacity, it is possible to fill the individual baskets in the flow area with additional filter media – up to 8 litres fill volume integrated bottom drain with high quality, finely engineered slide valve
- Flexible adaptation of the filter system to individual requirements (individual module)
- Innovative and reliable product - Made in Germany
Technical Data
| Dimensions (L × W × H) | mm | 830 × 600 × 820 |
|---|---|---|
| Net weight | kg | 37.00 |
| Guarantee (+ request guarantee) | Years | 2 + 1 |
| Material | GRP Duroplast/stainless steel | |
| Number of inlets | Units | 2 |
| Inlet connections | mm | 180 |
| Inlet connections | 2 × 185 mm | |
| Number of outlets | Units | 4 |
| Connections, outlet | mm | 50 |
| Outlet connections | 2 × 2" / 2 × DN 110 | |
| Sludge discharge connections | DN 75 | |
| Connection to | AquaMax Eco Gravity, Bitron Premium | |
| Min. flow rate | l/h | 10000 |
| Max. flow rate | l/h | 33000 |
| Installation height above water level | cm | 11.5 |
| Type of use | Gravity fed system, Pump fed system | |
| Other | Pollutant discharge incl. slide valve |
