OASE ProfiClear Premium DF-L pump-fed
- SKU:
- WF-FILTERDRUM-03OG010
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
OASE ProfiClear Premium DF-L pump-fed
- Highly efficient filter system
- Can be controlled with APP via the Easy Garden Control System (EGC)
- Intelligent controller completely handles the self cleaning
Characteristics
- Modern modular filter system for professional water quality where space is at a minimum
- Mature, professional technology with more than three years of development time
- Filtration with a filter capacity to 60 µm
- Automatic self-cleaning
- A microcontroller system, suitable for outdoor use, monitors and controls the functions

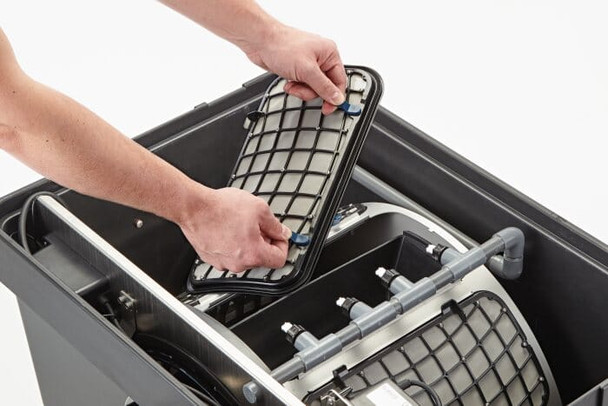

- Individually removable sieve elements (no tools required) and free-wheeling functions for easy access to the drum
- Particularly quiet in operation
- Quality high-pressure pump for flushing the drum in the scope of delivery
- Possibilities for connection to the Easy Garden Control System (EGC)
- Excellent decomposition rates of ammonium, ammonia, nitrite and nitrate
- Conveniently control all settings via an app with the Easy Garden Control System (EGC); existing systems can be upgraded using the separately available upgrade kit
- Highly effective at breaking down pollutants and nutrients using purpose-designed filter media in the moving bed process (Moving Bed module)
- Outstanding filter capacity with intelligent control functions
- Intelligent self-cleaning function for unique maintenance-free operation (drum filter module)
- Flexible adaptation of the filter system to individual requirements (individual module)
- Innovative and reliable product "Made in Germany" (except pressure pump)
- Safety level switch prevents jamming due to debris particles
- Additional 2" inputs with non-return valve for integration of additional pumps
- Flow capacity up to 25 m³/h
TECHNICAL DATA
| Dimensions (L x W x H) | mm | 830 x 600 x 820 |
|---|---|---|
| Rated voltage | 230 V / 50 Hz | |
| Power consumption | W | 5 |
| Power consumption, cleaning | W | 1050 |
| Cable length | m | 2.00 + 1.00 |
| Net weight | kg | 74.50 |
| Guarantee (+ request guarantee) | Years | 2 + 1 |
| Control unit | Microcontroller | |
| Temperature display | Digital | |
| Coarse debris extraction | µm | 60 |
| Number of nozzles/rinse quantity | 4 x 2.5 l/min | |
| Scavenging pump | 6 bar | |
| Automatic rinsing system | manually, Sensor, Time interval | |
| Number of sieve elements | Units | 8 |
| Filter intake surface | cm2 | 4200 |
| Material | GRP Duroplast/stainless steel | |
| Inlet connections | mm | 50 |
| Inlet connections | 2 x 2" + Bitron | |
| Number of outlets | Units | 2 |
| Outlet connections | DN 150 | |
| Sludge discharge connections | DN 75, DN 110 | |
| Flush trough connection | DN 110 | |
| Connection to | Bitron C 72 - 110 W, Bitron Eco 120 - 240 W | |
| Min. flow rate | l/h | 10000 |
| Max. flow rate | l/h | 25000 |
| Installation height above water level | cm | 40.0 |
| Possible water level difference | 5 cm | |
| Type of use | Pump fed system | |
| Other | Pollutant discharge incl. slide valve |
