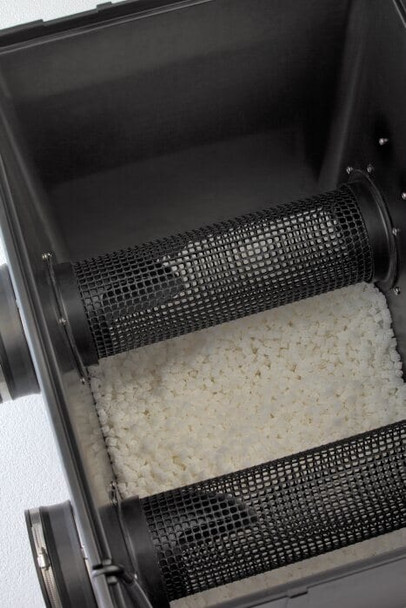

OASE ProfiClear Premium Moving Bed Module

  • Highly efficient filter system with deep bed filtration to 60 microns
  • Intelligent controller completely handles the self cleaning
  • First class price/performance ratio
Characteristics
  • Mature, professional technology with more than three years of development time
  • Extremely large, protected settlement surface for micro-organisms (806 m²/m³)

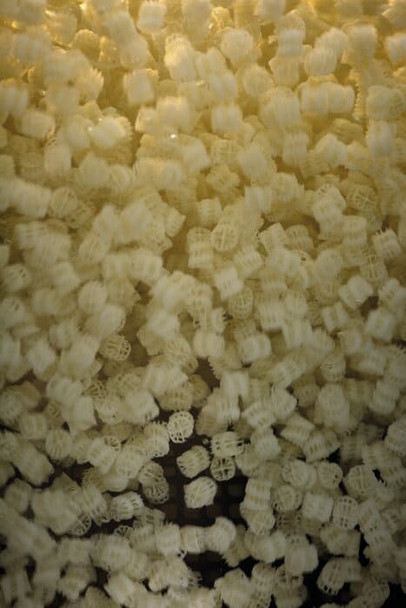

  • Innovative bypass technology for optimal movement of the Hel-X bio-elements
  • Removal of toxins, such as ammonium / ammonia, nitrite and nitrate
  • 50 l Hel-X decompose approx. 340 g of fish food per day (can be extended to 75 l / module).
  • Aerator bar for oxygen enrichment and turbulence already installed
  • Permanent, optimal oxygen supply; self-cleaning effect from dead biomass
  • Pulling the slide valve flushes the debris out via a DN 75 discharge
  • Highly effective decomposition of pollutants and nutrients thanks to professional filter media in the fluidised bed process innovative and reliable product »Made in Germany«
  • Highly effective at breaking down pollutants and nutrients using purpose-designed filter media in the moving bed process (Moving Bed module)
Specifications
Product Code 03OG012 | 50772
Material GRP Duroplast
Hel-X Media Included (L) 50
Space for additional Hel-X Media (L) 25
Biological Filter Surface (m2) 38.2
Maximum number of modules 3
Inlets (mm) 2 x 180
Outlets (mm) 2 x 150
Sludge Discharge (mm) 75
Min Flow Rate (lph) 10,000
Max Flow Rate (lph) 33,000
Installation height above water level (cm) 11.5
Dimensions (mm) 885 x 685 x 820
Weight (kg) 44
Material GRP Duroplast
Recommended Air Pump AquaOxy 2500-5000
Warranty 2
